Gas analyzer P2000
Features:
In the meantime, there is no need to worry about it. ”
In-Situ, installation of the measuring cell directly into the process
Multi-component (control up to six gases simultaneously)
No need for an expensive sample preparation system, as the sample is analyzed directly in the process
Explosion-proof version for P2000
Autocalibration of zero and span
Backflush available
High equipment reliability and minimal need for maintenance
Substantially lower cost compared to systems based on extractive analyzers
Russian engineering analytical systems
Gas analyzer Binar XX-XXX-X
.png)

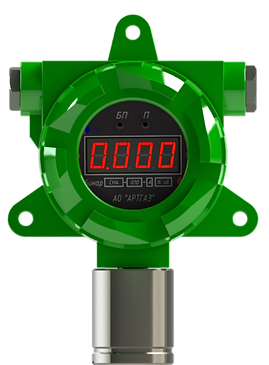

БИНАР XX-XXX-X - stationary gas analyzer for continuous automatic control and measurement of the monitored gas in the atmosphere.
The device marking is deciphered as follows:
XX - Modification of the device according to the gas table
XXX - Modification of the device according to the functions performed (see the table below)
X - Modification of the device by body material
-
A - Aluminium case
-
H - Stainless steel body
Technical advantages
Explosion-proof housing (protection level 1Exd[ib]IIСТ6/T4)
Protection of the shell from external influences
ІР66
Work in critical temperature conditions from -60 to +60 ˚ C
Output of a unified 4-20 mA signal proportional to the measured value of the monitored gas or digital HART / RS-485 ModBus RTU protocol. Issuance of control signals of the "dry contact" type
Function of a "black box" that records the current values of the monitored gas (volume fraction), temperature, calendar time.
All types of sensors: optical, electrochemical, thermocatalytic, photoionization. Calibration of instruments with an optical sensor every 2 years.
